Protective glass OG Y D37 d7 20 HP without O-Ring
| Quantity | Unit price |
|---|---|
| from 1 pcs |
€32.50*
|
| from 3 pcs |
€29.25*
|
| from 6 pcs |
€28.44*
|
| from 20 pcs |
€27.63*
|
| from 50 pcs |
€26.81*
|
| from 100 pcs |
€26.00*
|
Delivery time: 1-2 business days
Protective glass OG Y D37 d7 20 HP without O-Ring
- Protective glass for ProCutter 2.0 cutting head (20 kW)
- process facing side
- process facing side
- Depending on the wavelength of the laser used, suitable for the following laser powers:
- For laser wavelength of 1030 nm: suitable up to 12 kW laser power
- For laser wavelength of 1070–1090 nm: suitable up to 30 kW laser power
- Delivery without O-ring: For ecological reasons, since the previously included O-rings were usually discarded unused.
- If you require protective glass with an O-ring, please refer to article number P0595-132984.
| Outer diameter: | 37 mm |
|---|---|
| Part type: | Protective glass |
| Thickness: | 7 mm |
| Head Compatibility: | ProCutter 2.0, ProCutter Zoom 2.0 |
| Application: | Laser cutting |
-
Download "Optik Handbuch - deutsch"
Serviceanleitung zum richtigen Umgang mit optischen Teilen
-
Download "Optics handling instruction - english"
Service instruction for the correct handling of optical parts
Recommended accessories
- Optics service case for storing
spare optics and accessories (cleaning materials, protective covers, tools)
for the maintenance of beam shaping optics - For the refill set without a case, please switch to this product:
PQ0001-1050613 - Content:
- Narrow-neck bottle (100 ml)
- Cleaning paper
- Protective films
- Cleaning pads (large, medium, small)
- Pasteur pipette - Not included but additionally recommended:
- Canned air (cleaned, ionized compressed air)
- Microfiber cloths for optics
- Gloves
- Safety goggles
- green self-adhesive protection foil discs (MOCAP) for temporary covering of the open beam path or, e.g. during protective glass replacement
- 15 pcs with a diameter of 60 mm
- 5 pcs with a diameter of 76 mm

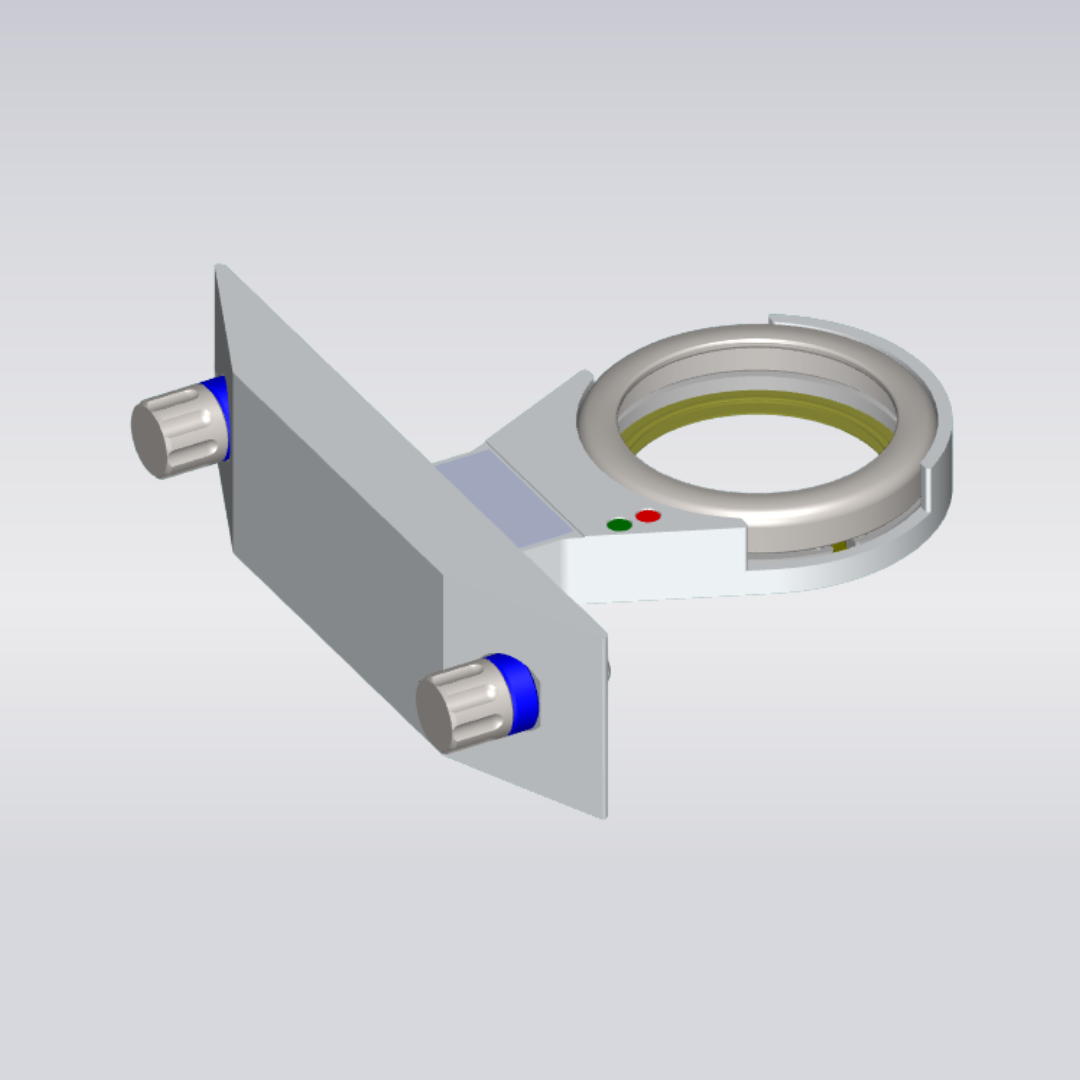

- Exchange cartridge for the protective glass under the focussing lens of the Laser Cutting head ProCutter 2.0 & ProCutter Zoom 2.0
- Enables a quick exchange of the cartridges and reduces the downtime of the optics
