- For Cutting heads ProCutter 1.0, ProCutter 2.0 8/20 kW, ProCutter Zoom 2.0
- Process-side protective glass
- For laser wavelength of 1030–1090 nm: suitable for up to 20 kW laser power
- Delivery without O-ring: For ecological reasons, since the previously included O-rings were usually discarded unused.
- If you require protective glass with an O-ring, please refer to article number P0595-132986.
- Protective glass for welding head YW30
- Protective glass for cutting head HP PLUS (collimation side)
- Protective glass for laser cutting heads
- Coating specifically designed for fiber and disk lasers (wavelength range approx. 1030–1070 nm)
- Compatible with laser cutting heads: SolidCutter (process side), LightCutter (process side), ProCutter Thunder (process side)
- Ceramic part suitable for cutting heads: ProCutter 1.0; LightCutter; MiniCutter; HPxx; DS; SpeedCutter; B2"
- 2D cutting
- Inside cone-shaped
- Duo nozzle electrode for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Diameter 1.2 mm
- Conical
- Duo nozzle electrode for cutting head ProCutter 2.0
- Diameter 1,2 mm
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Duo nozzle electrode for cutting head ProCutter 2.0
- Diameter 2,5 mm
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption

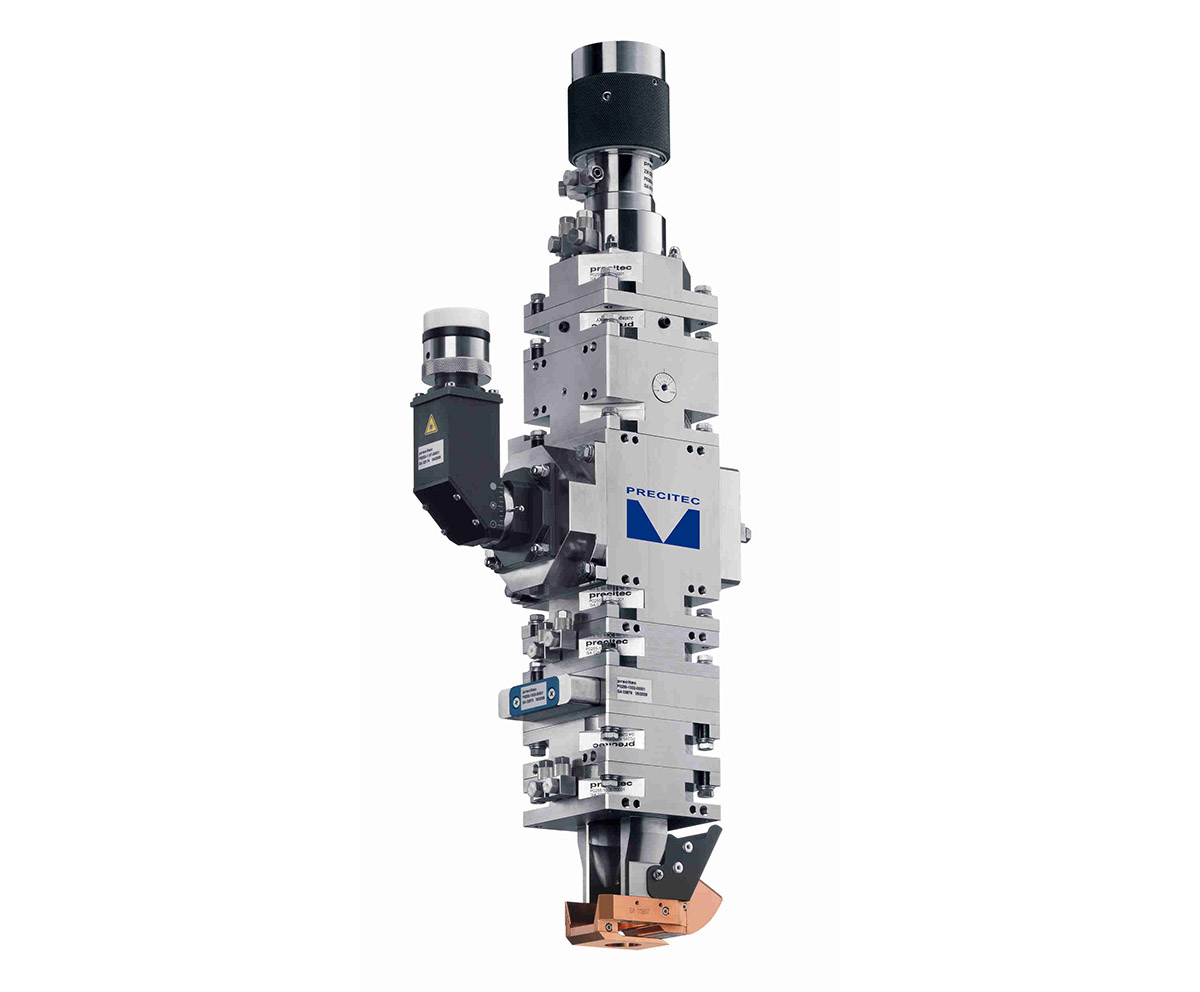

- Protective glass for welding heads: YW50, YW52, YC52
- Protective glass for cutting head YK52 (process side)
- For all disc and diode lasers
- Can also be used for fiber lasers in the wavelength range of 1064nm
- Nozzle electrode for cutting heads: ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter 2D
- Sensors: CM, Hx Ceramic part KT B2'' CON; KT XB
- Mechanical stable
- Good temperature absorption
- Diameter 2.0 mm
- Conical
- Duo nozzle electrode for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Diameter 1.5 mm
- Conical
- Ceramic part suitable for cutting heads: ProCutter 2.0; ProCutter Zoom 2.0 for use with "classic" HP / CS / DS nozzle electrodes
- 2D Cutting with laser nozzle type "DE HP 1.5" or "DE CS" or "DE DS"
- Thread size: M11x0.75
- Protective glass for ProCutter 2.0 cutting head, 30 kW and above
- Process-side protective glass
- For laser wavelength of 1070–1090 nm: suitable for 30 to 85 kW laser power
- Delivery without O-ring: For ecological reasons, since the previously included O-rings were usually discarded unused.
- If you require protective glass with an O-ring, please refer to article number P0595-132985.
- Ceramic part suitable for cutting heads: ProCutter 2.0; ProCutter Zoom 2.0
- 2D Cutting with laser nozzle type "DE KT X ..."
- For nozzle electrodes with thread size M15x1
- Nozzle electrode for cutting heads SolidCutter (>=F100), YR30 (>=F100)
- Tilted cutting is possible
- Focal length 100 mm
- Diameter 1.2 mm
- Protective glass for ProCutter 2.0 cutting head (20 kW)
- process facing side
- process facing side
- Depending on the wavelength of the laser used, suitable for the following laser powers:
- For laser wavelength of 1030 nm: suitable up to 12 kW laser power
- For laser wavelength of 1070–1090 nm: suitable up to 30 kW laser power
- Delivery without O-ring: For ecological reasons, since the previously included O-rings were usually discarded unused.
- If you require protective glass with an O-ring, please refer to article number P0595-132984.
- Duo nozzle electrode for cutting head ProCutter 2.0
- Diameter 1,5 mm
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Nozzle electrode for cutting heads: ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter 2D
- Sensors: CM, Hx
- Ceramic part KT B2'' CON; KT XB
- Mechanical stable
- Good temperature absorption
- Diameter 3.0 mm
- Conical
- Tactile nozzle electrode for cutting head LightCutter 2.0 3D, Thunder 3D, M1.5" KN
- Tactile nozzle electrode for sensor KN
- Diameter 1.5 mm
- Nozzle electrode for cutting heads: ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter 2D
- Sensors: CM, Hx
- Ceramic part KT B2'' CON; KT XB
- Mechanical stable
- Good temperature absorption
- Diameter 2.5 mm
- Conical
- Protective glass for cutting heads: LightCutter (collimation side), YR30 (process side)
- Nozzle electrode for cutting heads SolidCutter (Ff75), MiniCutter 3D, YH27, YR30
- Tilted cutting is possible
- Focal length 70 mm
- Diameter 1.2 mm
- Duo nozzle electrode for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Diameter 3.5 mm
- Conical
- Laser nozzle electrode for cutting head ProCutter 2.0
- Diameter 4.0 mm
- Mechanical stable
- Good temperature absorption
- Nozzle electrode for cutting heads: ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter 2D
- sensors: CM, Hx
- ceramic part KT B2'' CON; KT XB
- mechanical stable
- good temperature absorption
- diameter 1.8 mm
- conical
- Duo nozzle electrode for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Diameter 2.5 mm
- Conical
- Nozzle electrode for cutting heads: ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter 2D
- Sensors: CM, Hx
- Ceramic part KT B2'' CON; KT XB
- Mechanical stable
- Good temperature absorption
- Diameter 1.2 mm
- Conical
- Ceramic part suitable for cutting heads: ProCutter 1.0; LightCutter; MiniCutter; HPxx; DS; SpeedCutter; B2"
- 2D cutting
- Inside cone-shaped
- Material is harder and more break-resistant
- Duo nozzle electrode for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Diameter 2.0 mm
- Conical
- Laser nozzle electrode for cutting head ProCutter 2.0
- Diameter 3.0 mm
- Mechanical stable
- Good temperature absorption
- Duo nozzle electrode for cutting head ProCutter 2.0
- Diameter 2,0 mm
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Nozzle electrode for cutting head DS
- Filigree design allows detailed cutouts
- Diameter 1.2 mm
- Duo nozzle electrode for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Diameter 3.0 mm
- Conical

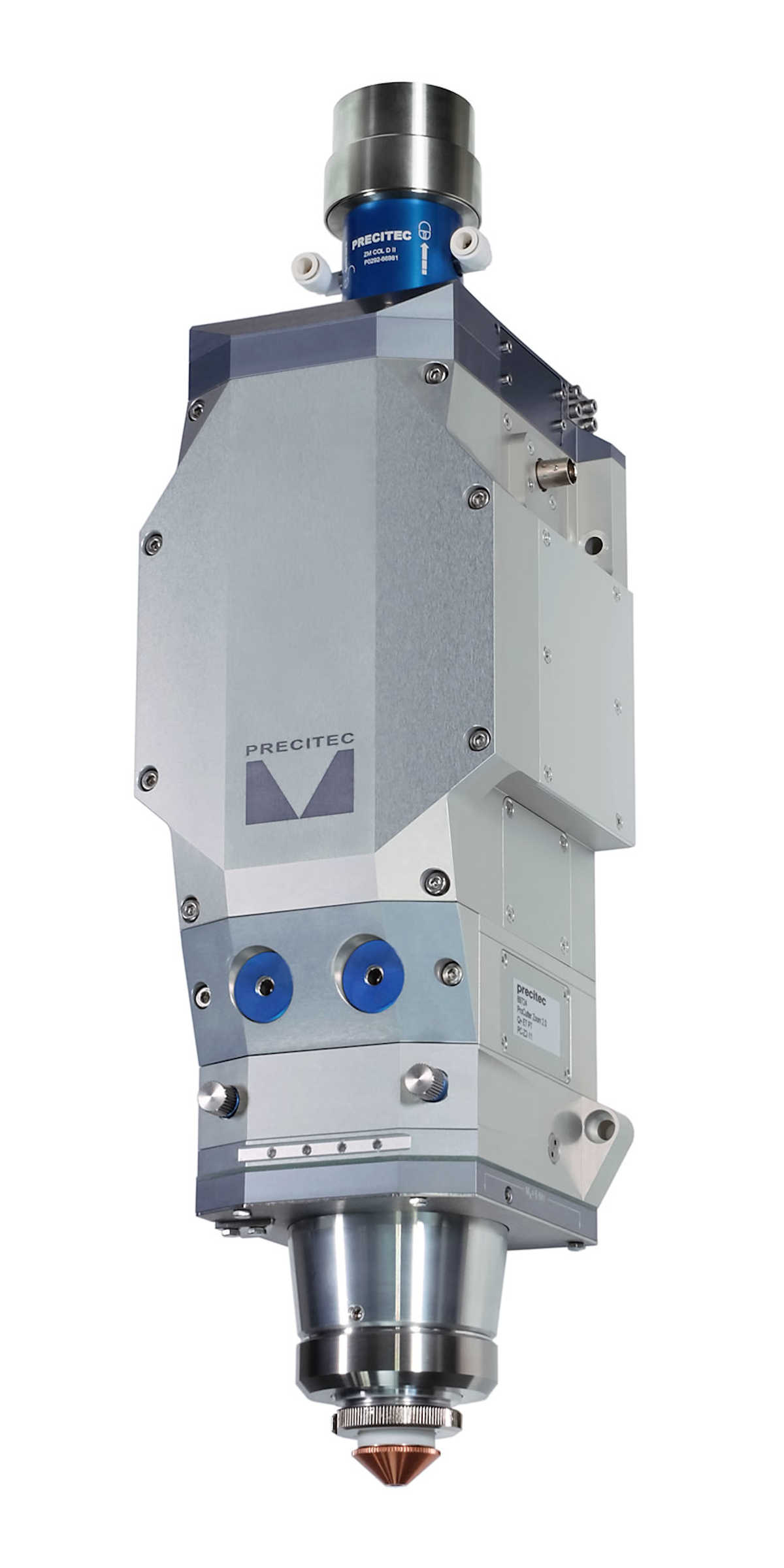

- Protective glass for ProCutter 2.0 and ProCutter Zoom 2.0 cutting heads (on the collimation side)
- Duo nozzle electrode for cutting head ProCutter 2.0
- Diameter 1,8 mm
- Ideal for thick mild steel
- Mechanical stable
- Good temperature absorption
- Ceramic part suitable for cutting head M1.5'' KN
- 2D cutting
- Ceramic part suitable for cutting heads: ProCutter 2.0; ProCutter Zoom 2.0
- 2D Cutting
- For nozzle electrodes with thread size M12x1
- Protective glass with diameter 55 mm, thickness 1,5 mm
- Fits welding heads YW52/YC52 with special 55mm protective glass cartridge (process side)
- Ceramic part suitable for cutting head M1.5'' KN
- 2D cutting
- Economical version
- (not compatible to EG492 & EG495)
- Nozzle tip for CoaxPrinter
- different nozzle sizes available
- Nozzle tip for CoaxPrinter
- different nozzle sizes available
- Nozzle tip for CoaxPrinter
- different nozzle sizes available
- Nozzle tip for CoaxPrinter
- different nozzle sizes available
- Nozzle tip for CoaxPrinter
- different nozzle sizes available
- Nozzle tip for CoaxPrinter
- different nozzle sizes available
- Nozzle tip for CoaxPrinter
- different nozzle sizes available
- Protective glass for laser cutting heads
- Wide range coating designed designed for all kind of lasers, also diode lasers (coating wavelength range approx. 900-1090 nm)
- Compatible with laser cutting heads: SolidCutter (process side), LightCutter (process side), ProCutter Thunder (process side)
- Ceramic part for CoaxPrinter laser cladding head
- Pre-defined breaking point for nozzle tip
- Protective glass for welding heads: YW50, YW52, YC52
- Protective glass for cutting head YK52 (process side)
- Used for all disk and diode laser
- Can also be used for fiber lases
- Compatible with IDM-Applications
- transparent also for laser wave length around 1550nm
- transparent also for laser wave length around 1550nm
